1、 Explanation

The CTN type coal washing specialized magnetic separator is a fully countercurrent wet magnetic separation equipment designed specifically for the recovery of magnetic media in heavy medium coal preparation plants. Its core technology uses computer simulation to design magnetic circuits, making the magnetic field distribution in the magnetic separation zone more uniform. Our unique design generates the maximum magnetic field gradient in the separation tank, and optimizes the magnetic energy to not dissipate outside the medium flow layer. Design more magnetic poles and angular gradients within the scanning area to achieve faster and more accurate separation of magnetic and non-magnetic materials. Belonging to industry-leading technology. Special wear-resistant treatment is applied to the surface of the groove and drum, with multiple options for wear resistance, greatly extending the lifespan of the entire machine. This machine can continuously feed and discharge ore, and can also be used in series with double tubes to make sorting more efficient.

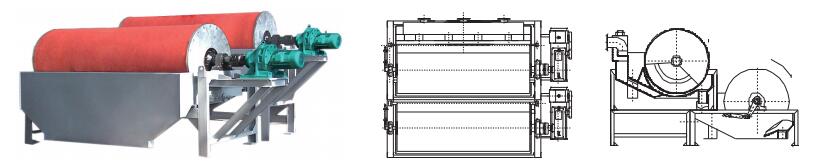

2、 Schematic diagram

3、 Scope of application
Suitable for wet separation of magnetic minerals mixed in fine-grained non-magnetic minerals with a particle size of 3-0mm. Especially suitable for iron removal and purification operations in non-metallic minerals such as quartz sand and potassium feldspar. This machine can continuously feed and discharge ore, with high magnetic field strength and gradient, and has high processing capacity.

4、 Principle

The principle is that when the slurry enters the magnetic field zone, strong magnetic minerals are adsorbed on the surface of the cylinder, weak magnetic and non-magnetic minerals are washed away by water flow, and the magnetic minerals adsorbed on the surface of the cylinder are carried out of the magnetic field zone by the rotation of the cylinder and washed into the concentrate tank with washing water to complete the sorting operation.

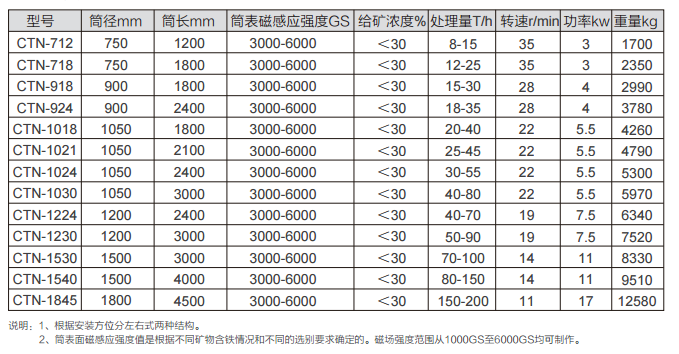

5、 Main technical parameters

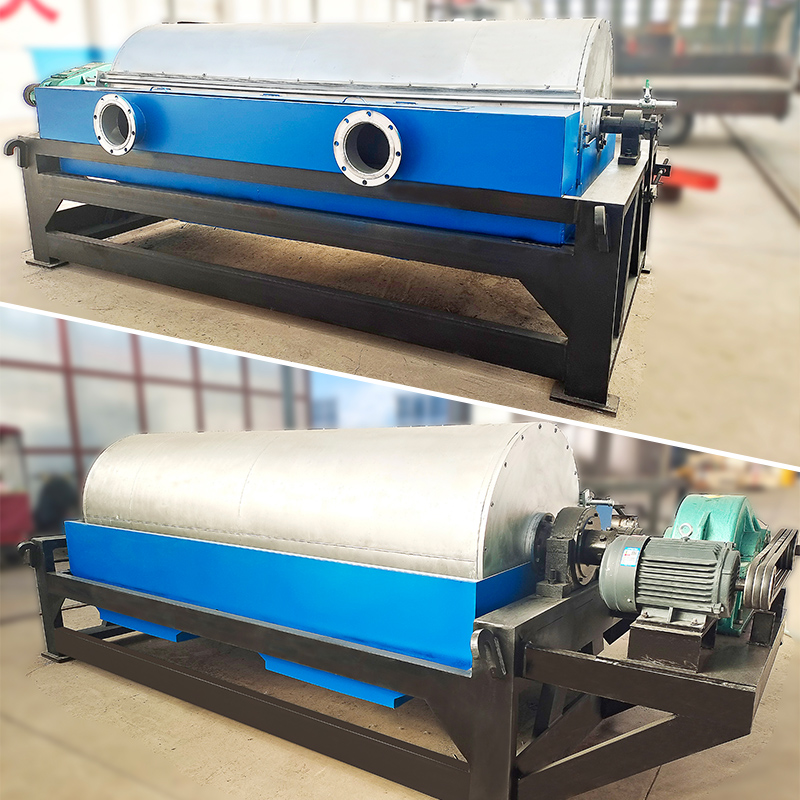

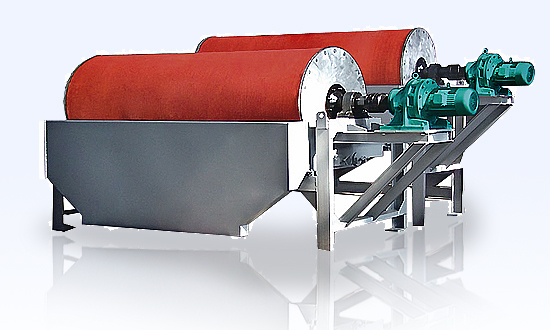

6、 Product shooting
