1、 Explanation

◇ Dual frequency or multi frequency technology can be selected. Shell material: stainless steel (standard type), PP, PS and other materials can also be selected. Complies with multiple international standards and regulations: IFS, HACCP。

◇ It has high detection accuracy and stability, with a minimum accuracy of 0.23mm iron ball.

The detection coil uses a completely sealed method inside, which has high stability and can effectively prevent the outward diffusion of electromagnetic waves, thereby reducing false alarms caused by the movement of metal components externally.

Product effect compensation function: It can automatically learn and compress product effects. Product tracking function: It can automatically adjust and compensate internally based on changes in product effects. Protection level: IP65。 Optional IP67 rating. Temperature range for detecting materials: -20-80 ℃; If the temperature exceeds this range, special high-temperature options can be selected. Optional Chinese operation interface, multiple exclusion methods to choose from.

2、 Characteristics

Can be applied to bulk materials and post packaging testing. High strength noise resistance, suitable for vibration, impact, and temperature changes in industrial sites.

◇ Conveyor belts and separation devices can be provided according to customer requirements, and integrated conveyor belts and removal devices are optional.

◇ Optional for special occasions, such as high temperature and highly corrosive environments. Optional for use in dust explosion-proof areas, compliant with Atex Zone 22.

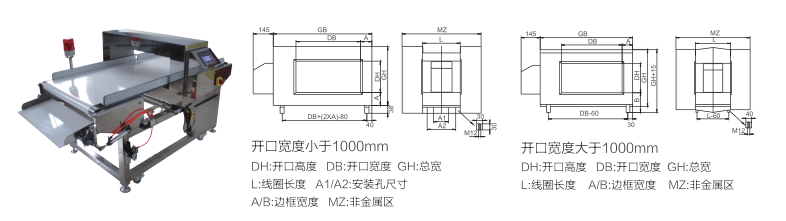

3、 Schematic diagram

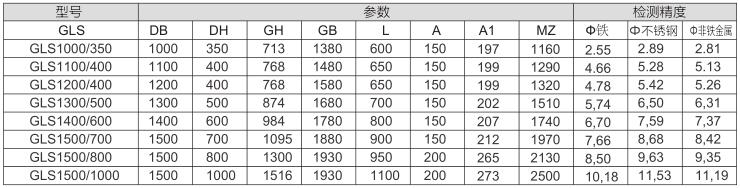

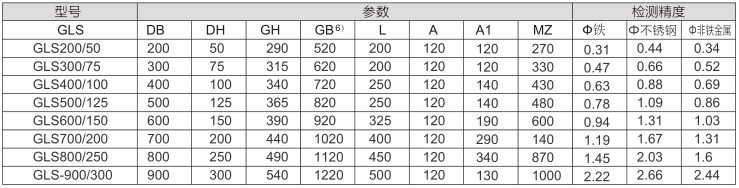

4、 Main technical parameters

5、 Industry Applications
