1、 Explanation

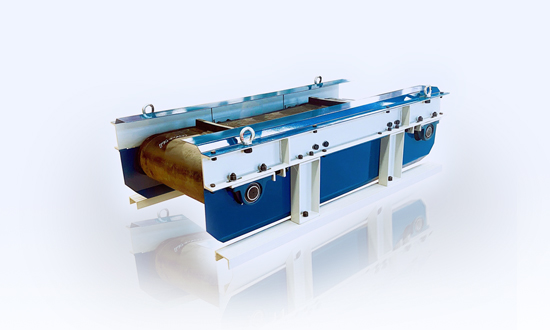

This machine uses high-strength rare earth neodymium iron boron to form a strong magnetic core, which has a strong magnetic field and high magnetic field gradient.

Suitable for installation in narrow spaces with limited space, the device itself is lightweight and easy to hang and install. Easy to move and switch to another location for work.

◇ Simple structure, easy maintenance, simplified components, and reduced maintenance costs.

◇ Using a shaft driven motor, it effectively solves chain breakage, chain drop, or belt breakage and slipping faults in chain wheel and chain drive.

The automatic iron unloading tape adopts a high-strength circular integrated rubber belt, and the built-in scraper easily completes the iron unloading operation.

Stainless steel protective plates are designed around the magnetic core to effectively prevent damage and accidental injury caused by splashing ferromagnetic materials during iron unloading.

◇ It can support installation brackets, which can meet different installation methods and protect the belt from external damage, extending the life of the belt.

◇ Suitable size and performance can be customized according to the user's on-site space and requirements.

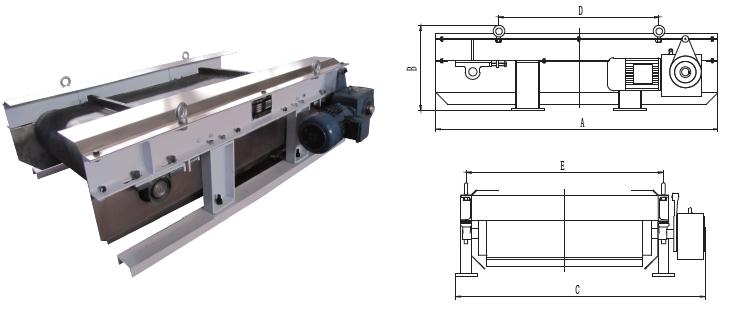

2、 Schematic diagram

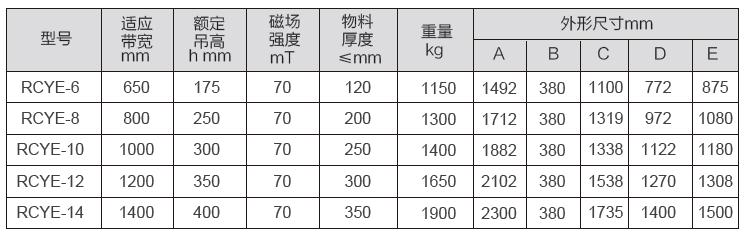

3、 Main technical parameters

Note: This equipment is designed with extra strong T1, T2, and T3 products that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively.

4、 Industry Applications
