1、 Explanation

The CTB wet semi countercurrent magnetic separator is suitable for the scanning and selection of strong magnetic materials with a particle size of 0.5mm or less in wet separation, especially for the selection of minerals with a particle size of 0.15~0mm. Or remove the strong magnetic minerals mixed in non-magnetic minerals.

The CTB wet semi countercurrent magnetic separator can obtain high-quality iron concentrate and achieve good recovery rate, so the semi countercurrent magnetic separator has been widely used in production practice. This machine can continuously feed and discharge ore, with high magnetic field strength and gradient, and has high processing capacity. Multiple units can be connected in series and parallel to achieve multiple scanning and selection.

The principle is that when the slurry enters the magnetic field zone, strong magnetic minerals are adsorbed on the surface of the cylinder, weak magnetic and non-magnetic minerals are washed away by water flow, and the magnetic minerals adsorbed on the surface of the cylinder are carried out of the magnetic field zone by the rotation of the cylinder and washed into the concentrate tank with washing water to complete the sorting operation.

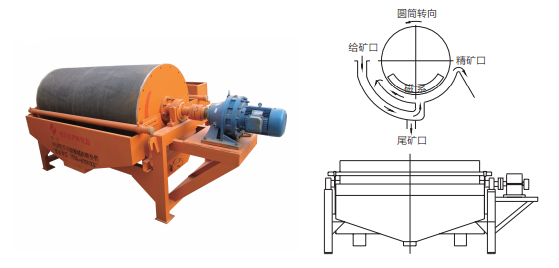

2、 Schematic diagram

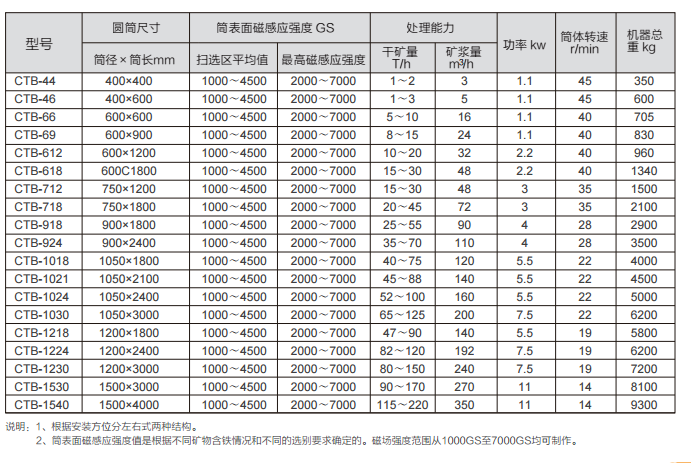

3、 Main technical parameters

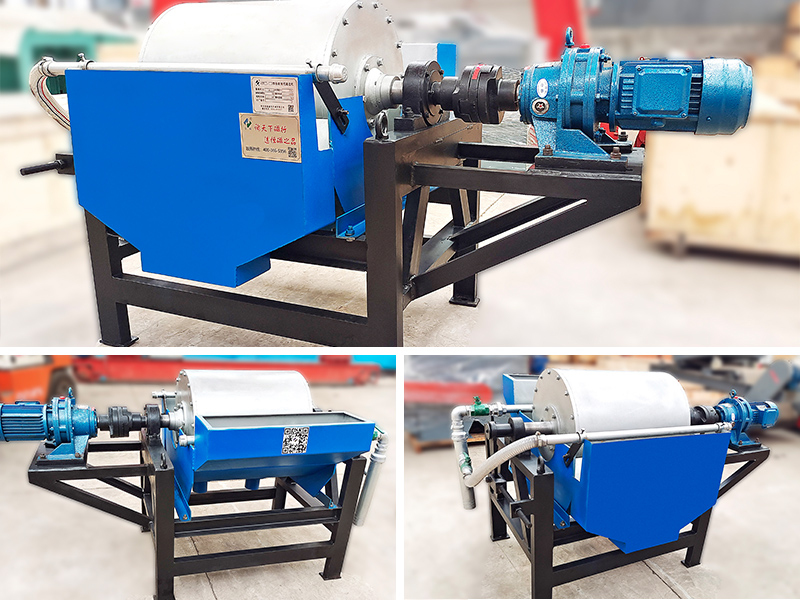

4、 Product shooting
