1、 Explanation

The CTDG type permanent magnet bulk dry magnetic separator is a new type of high-efficiency energy-saving mineral processing equipment. In addition to existing standardized products, magnetic separators (magnetic pulleys) with different magnetic induction strengths can also be designed and manufactured according to specific user requirements, suitable for different belt specifications. The product is widely used in metallurgy and other industries, and can meet the needs of large, medium, and small mining plants; The pre selection operation of each section after crushing the ore in the user's magnetic separation plant can remove the mixed waste rock, restore the geological grade, save energy consumption, and increase the processing capacity of the beneficiation plant; Used in mining sites to recover magnetite ore from waste rock and improve the utilization rate of ore resources; Used for recovering metallic iron from steel slag; Used for sorting useful metals in garbage disposal to improve the environment.

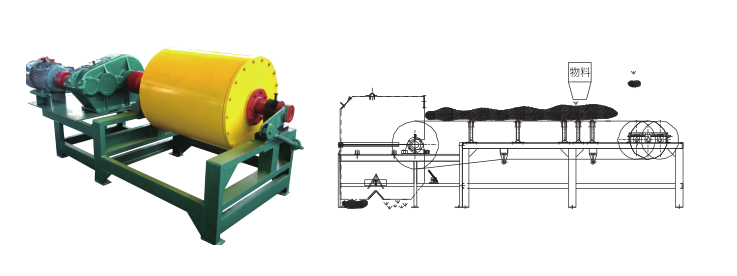

2、 Schematic diagram

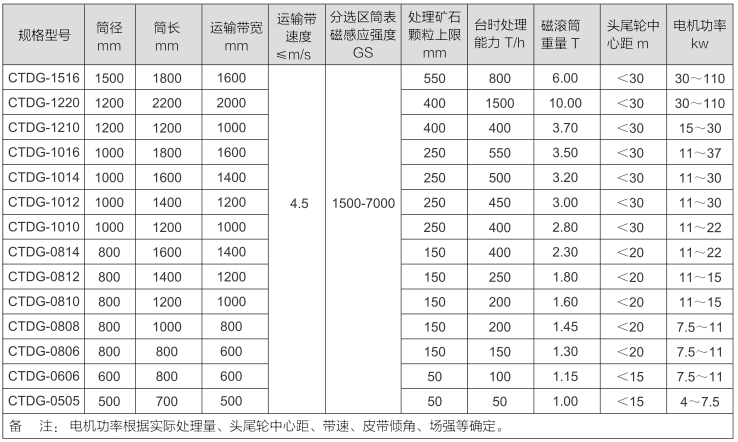

3、 Main technical parameters

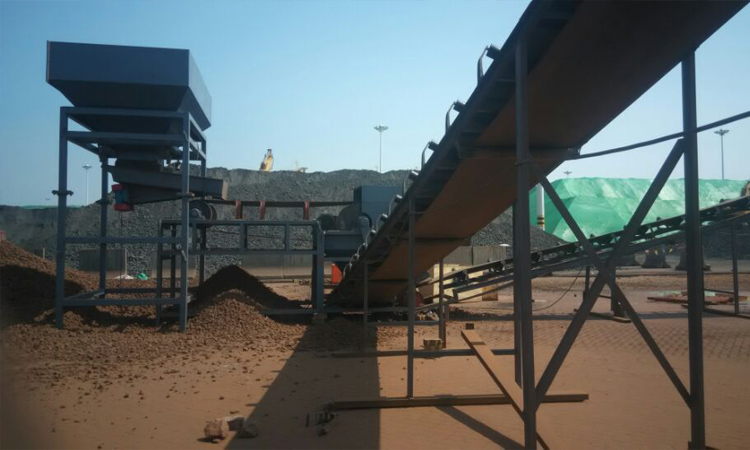

4、 Industry Applications
